CONTA-CONNECT ( Terminals and Accessories )

CONTA-CLIP is excellently positioned across all connection technologies and is one of the leading technical suppliers in many areas. Whether screw connection system, push-in connection system, tension spring connection system or bolt connection system - the portfolio is absolutely marketable.

Terminals with Push-in connection system

Our wide range of innovative PRK and FRK terminal blocks with the Push-in connection system include feed-through terminals, PE terminals, disconnect terminals, fused terminals, multi-level terminals, installation terminals and initiator terminals, for conductor cross-sections from 0.2 mm² to 25 mm².

Online catalog PRK Video PRK

Online catalog FRK Video FRK

Terminal blocks in push-in connection from CONTA-CLIP

Terminals with screw connections and special terminals

Everything for classic wiring with screw connection systems (also for high currents): SRK feed-through and PE terminals, RK high-temperature variants, TK transformer terminals, HSK high-power stud terminals, SVB series screw distributor blocks, and the modular feed-through terminal systems from the SDK series.

Online catalog SRK Video SRK
Online catalog RK
Special Terminals

Terminal blocks with screw connections from CONTA-CLIP

Stud connection system

The newest generation of stud terminals from CONTA-CLIP offers secure connections for all energy-transmitting applications. Depending on the wire cross-section, the HSKG stud terminals can be used with M6, M8, M10, M12 and M16 threaded studs. The rated current is from 125 A to 520 A with a rated voltage of 1000 V. The wire connection range is from 2.5 mm² to 300 mm².

Online catalog (HSKG) Video

Terminals with tension-spring connection

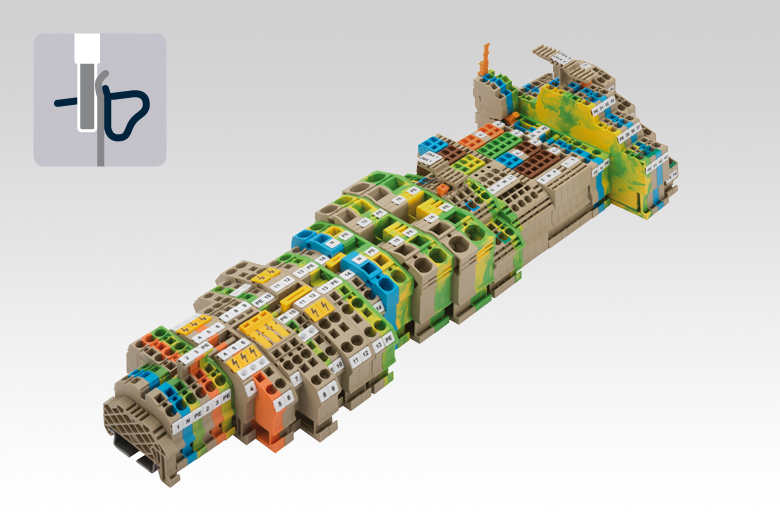

Our versatile line of terminals with tension spring connections for conductor cross-sections from 0.2 mm² to 16 mm² includes: the ZRK/ZSL series of feedthrough and PE terminals, the double-level ZRKD/ZSLD, the ZIKD three-level terminal blocks, motor-connection terminals, (blade-) disconnect terminals, fused terminals, direct-mount terminals, and initiator/actuator terminals for transmitting positioning, encoder and alert signals.

Online catalog (ZRK) Video

Terminal blocks with tension spring connection from CONTA-CLIP

Fast and individual according to your needs for your needs

We process terminals and housings according to your specifications or drawings. Whether screwed connections or components - we assemble as required, mount terminal strips on mounting rails and take over the marking. You can also outsource the storage of individual components and the management of parts lists.

Individual product request
